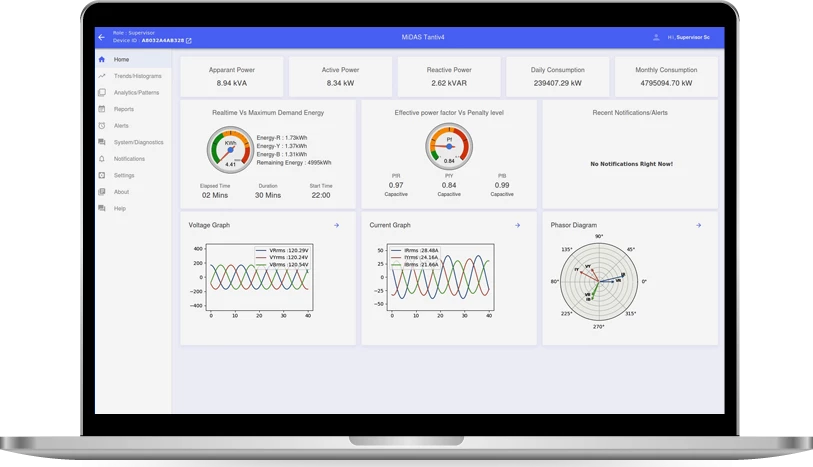

MiDAS Dashboard

This is a home screen of your Asset, this can be entire plant, department or the equpiment, based on where you perform the measurement.

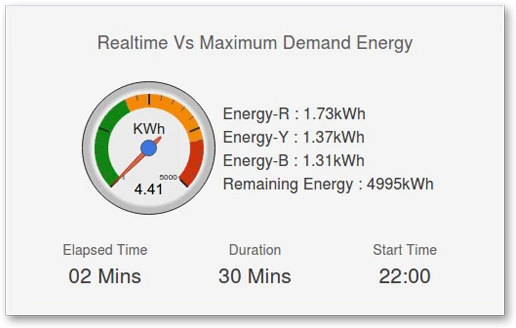

First dial shows current demand and this can be compared with Maximum Demand.

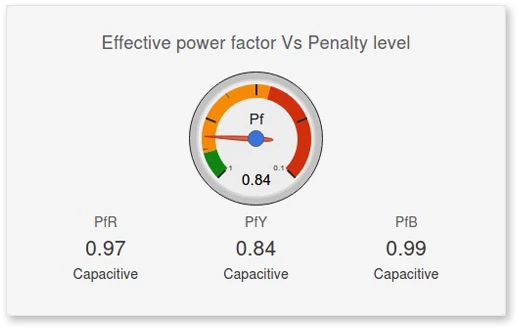

Second dial shows Power Factor and it can be compared with benchmark you set for Power factor which is not allowed as it increases Reactive Power and increases billing.

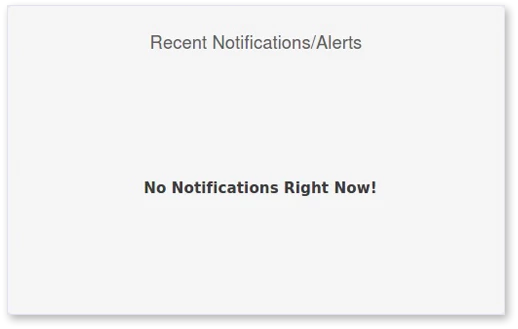

Notifications shows last 5 notifications received such as Voltage sag and swells, interruptions etc.

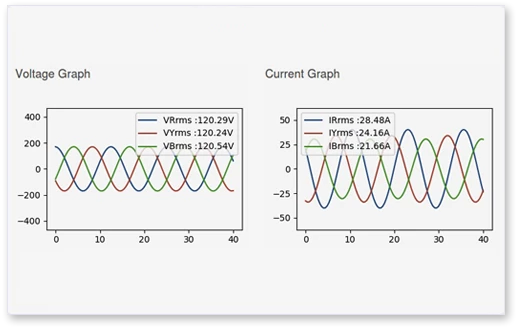

Voltage and Current graphs shows the real time values of last 40 seconds which are useful to detect any anomaly in the circuit.

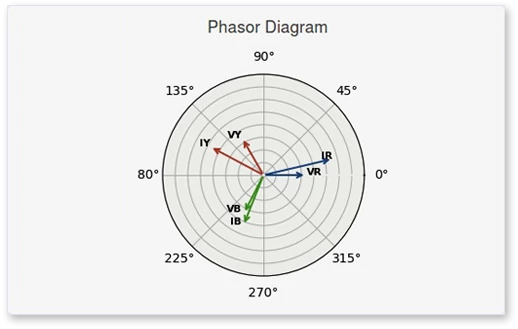

Phasor Diagram shows Vlotage and current phases of all 3 phases which shows you the phase angles between voltage and currents, their values which are useful for setting the load distribution.

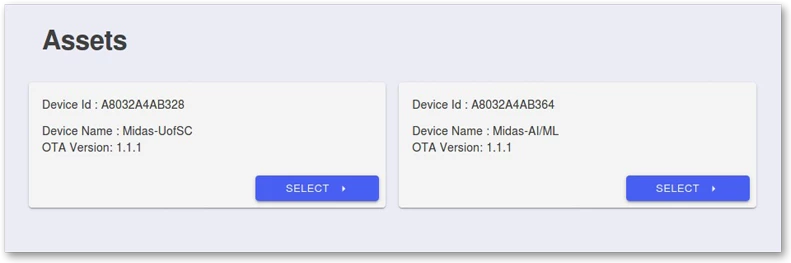

Asset Selection

Here you can select the assets which you install in your plant and it will take you to home screen of that asset.

Diagnostics

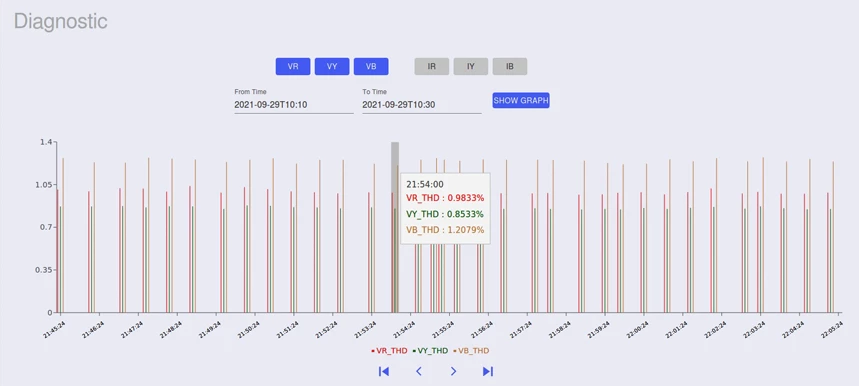

This screen shows you no of harmonics present in the power line and Total Harmonic Distortion value.

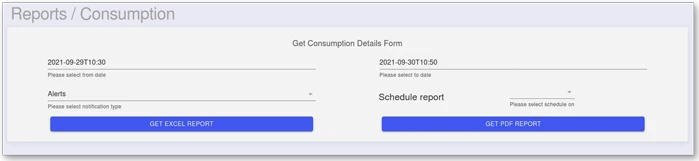

Reports

Here you can select the report such as Alerts, Notifications, events in a specified period, you can either download a report in Excel form/PDF format or schedule a report and you can receive it on your email at regular specified interval.

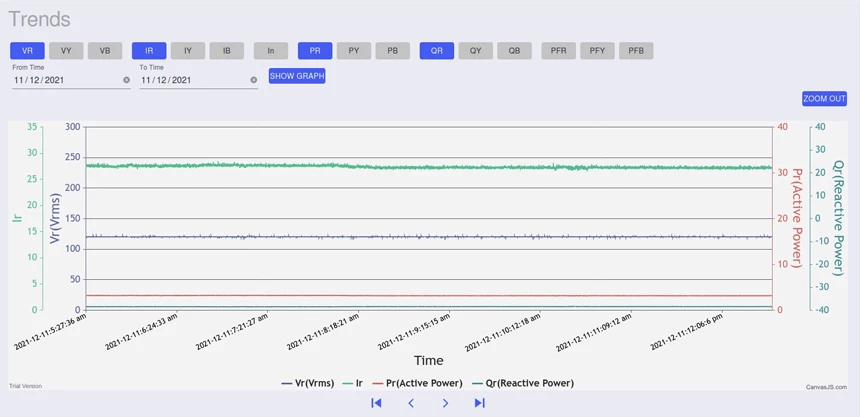

Trends

Here you can see the logged parameter for the specified date and time for the particular asset.

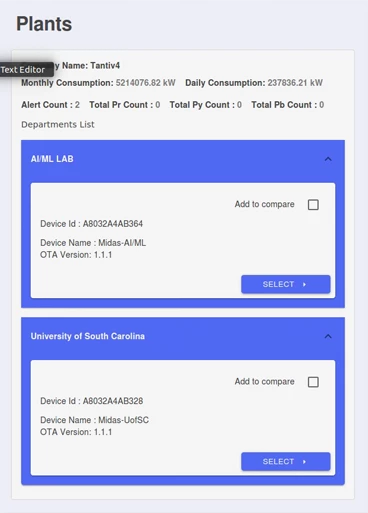

Plant Selection

Here you can select the Plant which you configured for your organisation and it will take you to home screen of that asset selection page of that plant where different assets are configured in the selected plant.
